Robust and reliable transportable oxygen concentrator with 24/7 capabilities and over 5 hours battery life at pulse setting 2.Batterycartridgewillre-chargewhenunit isconnectedtoDCpowerforall continuous flow settings up to 2.0 LPM and all pulse flow settings up to 192 ml.
Next generation internal components enhance unit reliability.autoSATTechnology helps maintain a consistent FiO2 by servo-controlling the device to meet the patients changing respiratory rate.Three available rise time options—Fast, Medium, and Slow Three Adjustable Pulse Dose sensitivity settings.

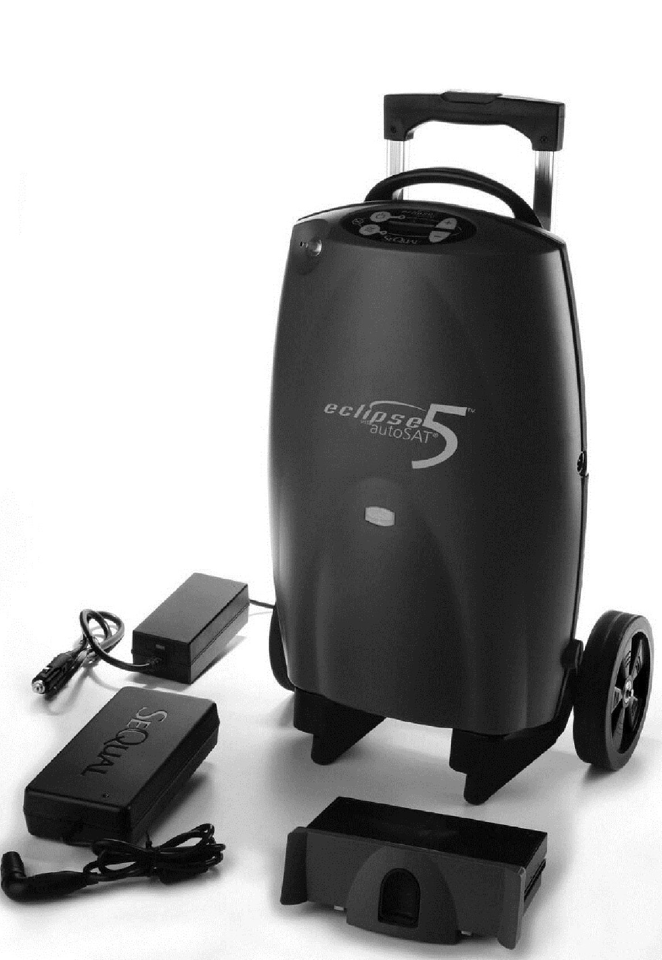

Innovative Universal Cart design allows for easy access to battery AC and DC adapters that are smaller in size, yet more durable. In Pulse Dose Mode, if an inspiratory effort is not detected, the device will deliver a continuous flow of oxygen; continually searching for a breath every 15 seconds.
- All continuous flow and pulse dose volumes available while operating on DC power.
- Flow rates 0.5 – 3.0 LPM (0.5 liter increments)
- Pulse Dose volumes from 16mL to 192mL
- 5.4 hours of battery life at 2 pulse and 2 hours of battery life 2 LPM continuous flow.
- 15 lb. (6.8 kg), Battery 3.4 lb. (1.5 kg)
- 18.4 lbs. with battery and cart installed.
- Dimensions 49.0 cm H x 31.2 cm W x 18.0 cm D
- Purity 90% +5.5/-3%
- Battery duration – 2 hours (at 2LPM continuous flow) & 5.2 hours (at a pulse dose setting of 2 setting)
- Battery Recharge 1.8 to 5.0 hours recharge time (dependent upon the flow)
- Sound level 48 dBA at 3.0 LPM Continuous Flow Mode & 40 dBA at 3.0 Pulse Dose setting
